MULTIPACT® laminated safety glass

Laminated safety glass for crystal clear security

Safety glazing protects people and animals when using properties with special safety requirements. These can be standard applications, such as overhead glazing, glass floors and partitions, or requirements for fall protection and attack resistance. No matter what you are using our MULTIPACT® for, as an insulating glass unit or a monolithic glazing, rest assured that it will make your home, store or office building more secure.

ISOLAR® safety glass in different variants

Our laminated safety glasses consist of two or more layers of glass, which are bonded together with one or more elastic intermediate layers. This is usually a polyvinyl butyral (PVB) film. Depending on the requirements, the materials of the film differ: For example, there are softer films with sound-absorbing properties and particularly tear-resistant films for attack-resistant glazing. In addition, coloured films can be used to meet architectural preferences.

Standard applications: Sure-footed in everyday life

Trittsicher durch den Alltag

Fall protection glazing: For protection from

Zum Schutz vor dem Hinabfallen

Attack-resistant glazing

Isolierglas mit durchwurf- oder durchbruchhemmenden Eigenschaften

Attack-resistant glazing

Function & properties

MULTIPACT® insulating glass with impact-resistant or penetration resistant properties makes it more difficult for burglars and violent criminals to break through the glass and windows. The effort and time required for the attack are increased. Thus, often the “object of desire” already becomes uninteresting for the perpetrator. After damage by projectiles, striking tools or even after explosions or gunfires, the MULTI- PACT® glazings, which have been tested to standards, still exhibit considerable stability. This too provides the required protection to persons and property. The test of attack-resistant properties is carried out in accordance with the European standards EN 356 (impact and penetration resistance) and EN 1063 (ballistic security). The attack-resistant properties of MULTIPACT® are divided into the following four categories:

MULTIPACT® PA with impact resistant properties
MULTIPACT® PB with penetration resistant properties
MULTIPACT® BR/SG with bullet resistant properties
MULTIPACT® ER with blast resistant properties

Applications

Façades and windows, roof glazing, winter garden glazing, noise reduction glazing

Glass Type

As monolithic laminated safety glass (float, TSG or HSG) or in combination with Multi-pane insulating glasses (double glazing, triple glazing)

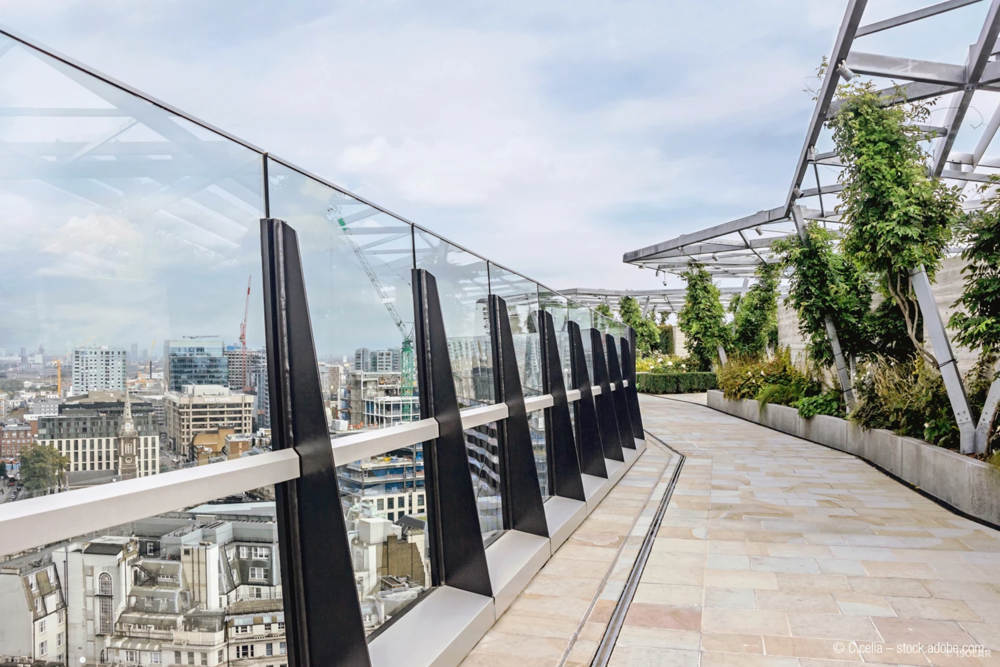

Fall protection glazing

Function & properties

People should be protected from falling by appropriate vertical or horizontal glazing. The fall protection function is only achieved through the combined action of glass, frame and the proper attachment to the building structure. According to DIN 18008-4, fall-protection glazing is divided into categories A, B and C, which differ in terms of their areas of application, the types of glass and glass structures that can be used, and additional requirements. You can get detailed information about this on request.

Applications

Balcony parapet walls, floor-to-ceiling glazing above the ground floor.

Glass Type

As monolithic laminated safety glass (float, TSG or HSG) or in combination with Multi-pane insulating glasses (double glazing, triple glazing)

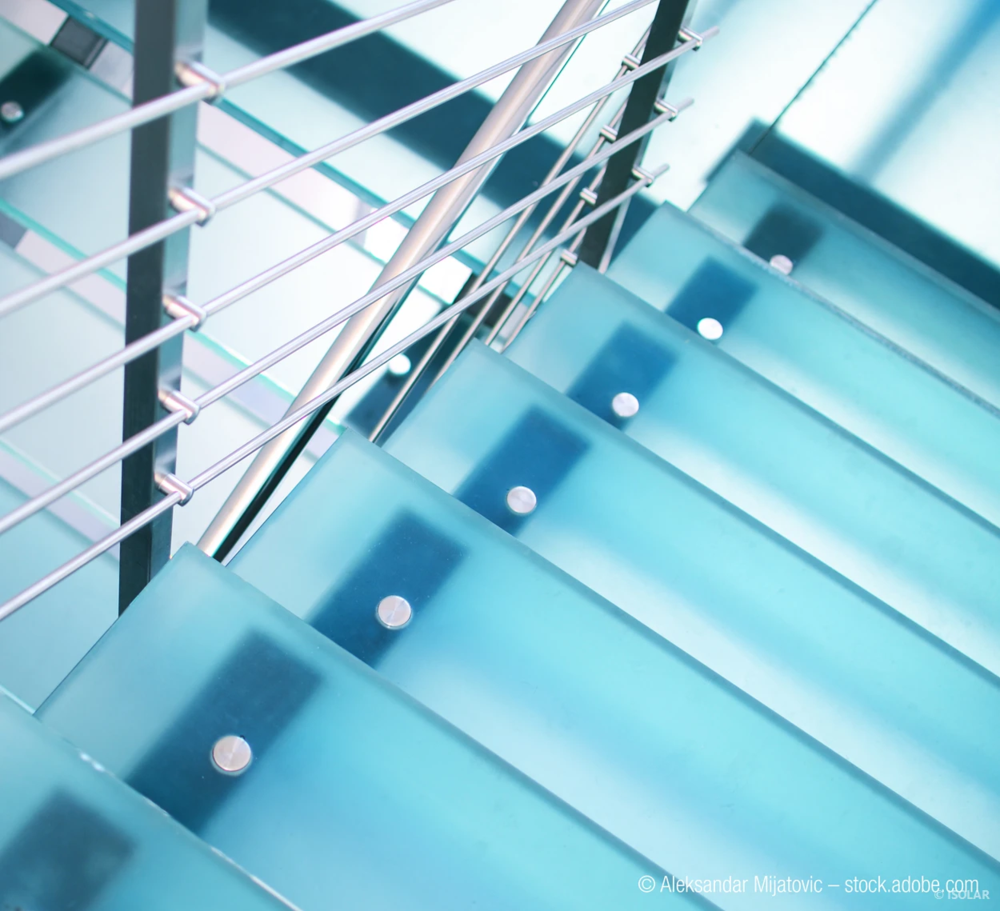

Standard applications

Function & properties

Our MULTIPACT® laminated safety glazing can be used to realise partition walls, floors, stairs or roofs made of glass. One of the many ways in which our glass provides protection is by ensuring that in the event of glass breakage, no large glass elements fall onto the traffic areas below it.

Applications

Partition walls, floors, stairs, roofs made of glass

Glass Type

As monolithic laminated safety glass (float, TSG or HSG) or in combination with Multi-pane insulating glasses (double glazing, triple glazing).

Downloads

MULTIPACT® | Technical Data pdf | 52 KB

References

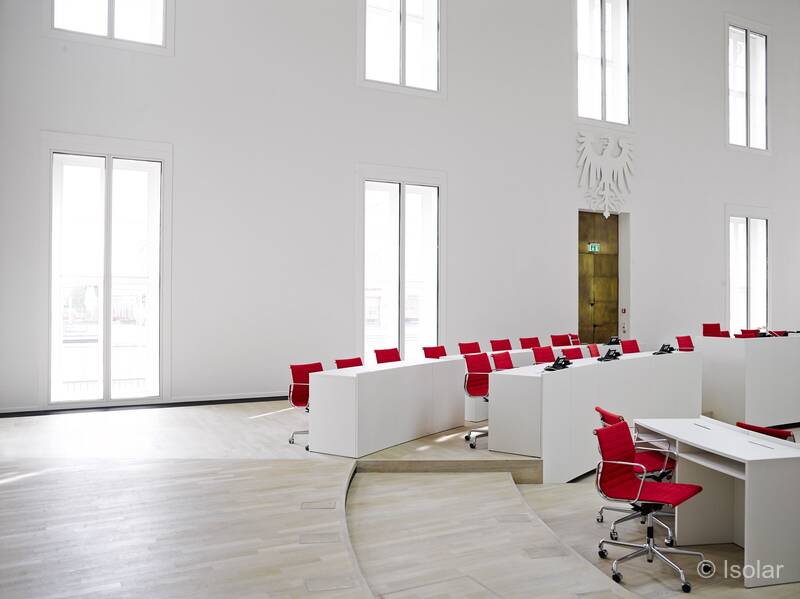

Landtag

Potsdam

Details

MA’RO Opernquartier

Frankfurt/Main

Details
